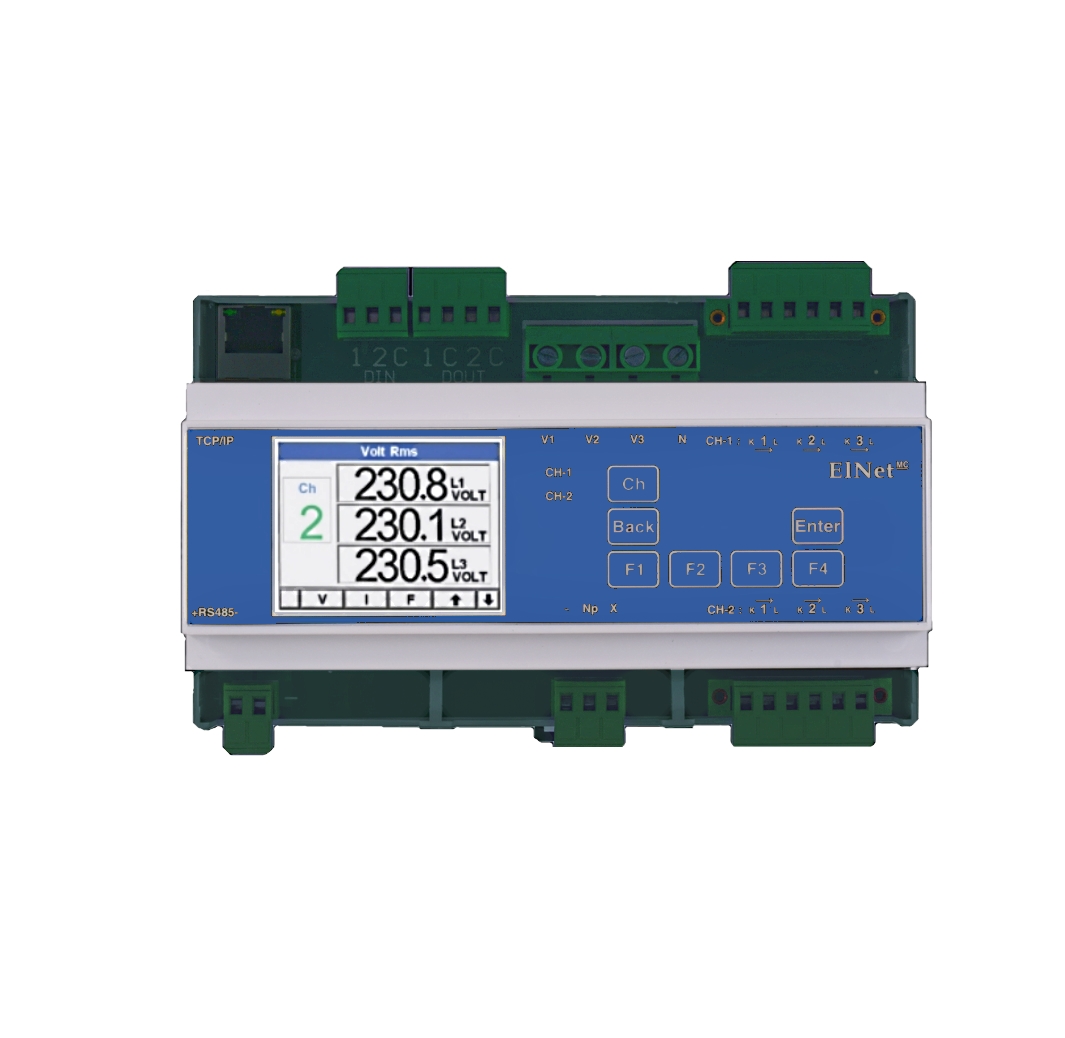

Product Description
General
2 sets of three phase energy meters or up to 6 single phase energy meters.
Up to 6 months of energy data logging.
Build in T.O.U Energy meter.
Harmonics measurements – up to 64th Harmonic.
Display of Waveform and Bar graph.
Electrical variables displays.
1,600 samples per cycle.
Accuracy 0.2 %.
RS-485 communication port.
Modbus and BACnet protocols (RTU/MSTP/IP).
Ethernet (TCP/IP), Web browser capability.
Simple operated menus.
High resolution color display (320×240 pixels).
Simple installation – DIN Rail mounted.
Multilingual support.
Technical Specifications
Power Requirements : 90-250 VAC 60/50 Hz, 110-280 VDC, 6VA
Dimensions (H x W x D) : 160 x 97 x 65 mm
Shipping Weight : 550gr.
Working Conditions : -20 – 70ºC : 0 – 95 RH%
Measurement Range:
Voltage : 0 – 550 VAC
Voltage (with transformer) : up to 999999999 MV
Current (with transformer) : up to 999999999 MA
Maximum Input Voltage : 1000V
Maximum Input Current : 6A
Supported Current Sensors : 1 Amp/5 Amp
Measurement Type : True RMS
Standard Approvals:
EN62052-11, EN62053-22, EN62053-23, CE, UL61010, EN61000-3-2, EN61000-3-3, BTL
